Horizontal Revolving Blade Cutting Machine
CNC Horizontal Revolving Blade Cutting Machine Manufacturers & Factory. We accept OEM custom products all made in China.
- Model No.：HK-HD20
- Machine Type：Revolving Blade
- Blade Type：Horizontal Blade
- Cutting Speed：0~40M/Min
- Accuracy：±1MM
- Warranty Period：1 Year(Core Component)
- Video Factory Inspection：Yes
- Selling Point：Low Maintenance Cost,Famous Brand Motor,Good Performance
In the processing process of enterprises, there are various cutting methods for foam cutting, and they all have their own characteristics. Manual eva foam cutting is flexible and convenient, but the cutting quality is poor, the size error is large, the material waste is large, the subsequent processing workload is large, and the labor conditions Bad, resulting in low production efficiency. Semi-automatic eva foam cutting, the quality of the cutting workpiece is better, and the eva foam cutting using CNC cutting can effectively improve the efficiency of foam cutting, the cutting quality and reduce the labor intensity of the operator.
●Turntable for cutting 3D shapes easily
●Tooth and toothless blade can be changed according to different cutting materials
●High Speed and high efficient production
●The cutting height of the machine can be adjusted according to the processed products
●Bulk production of cushion parts made from PUR soft foam , visco or lates in on time
Machine Features
Fast processing speed, fewer vulnerable parts, high cuttingaccuracy, dust-free , low noise, and support for replacement of toothed and toothless blade.
Technical Data
| Machine Weight(T) | 3.5 | AC power supply | 220V 380V 415V 50/60HZ |
| Total Power (KW) | 13 | Manual Rotating Table /Conveyor | Conveyor |
| Cutting Accuracy (MM) | ±1 | HengKun Software | Standard |
| Maximum Cutting Size(MM) | 3000*2200*1300 | Knife Alarm | Installed |
| Tool Size (MM) | 12050*3.5*0.6 | Self-diagnostic system | Installed |
| Cutting Speed(M/MIN) | 0~40 | Knife Button | Installed |
Applications
Foams, latex, soft furniture, automotive products.

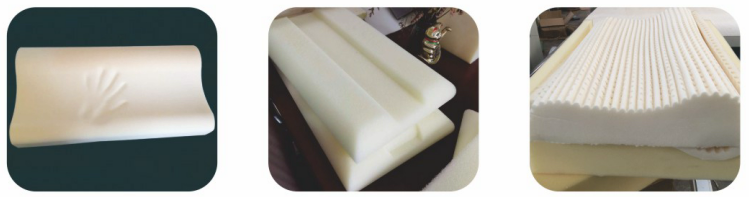

Cutting Sample Scene
Cutting Video
