Horizontal Fast Wire Foam Cutting Machine
CNC horizontal fast wire foam cutting machine Manufacturers & Factory. We accept OEM custom products all made in China.
- Model No.：HK-KX12
- Machine Type：Fast Wire
- Blade Type：Horizontal Blade
- Cutting Speed：0~10M/Min
- Accuracy：±0.5MM
- Warranty Period：1 Year(Core Component)
- Video Factory Inspection：Yes
- Selling Point：Easy To Operate,Low Maintenance Cost
CNC horizontal fast wire rigid foam cutting machine is suitable for rigid and flexible PU,rock wool(miner wool),phenol foams,EVA ,PIR ,PUR ,foamglass fireproofing panel , EPS,PVC and other rigid foams material.
All of the cutting movement is totally controlled by computer and this will reduce large amount of human resources and improve the production efficiency.It can save more power and material consumption.
● CAD drawing and Automatic typesetting to save cutting material;Easy to operate and learn
● Low maintanence cost and less vulnerable part
● Installing the automatic knife break protection .It can prevent knife from breaking suddenly
● Easy to change the machine blade in 2 minutes and low maintanence cost
● Main motor,servo motor and pneumatic component are all imported brand to gurantee the high-quality product .
● The cutting height of the machine can be adjusted according to the processed products .
Machine Features
High cutting accuracy, fast speed, low material loss, low consumable cost and unique forming advantages.
Technical Data
| Machine Weight(T) | 2.4 | AC power supply | 220V 380V 415V 50/60HZ |
| Total Power (KW) | 8 | Workbench Structure | Flat worktable/Manual Turntable |
| Cutting Accuracy (MM) | ±0.5 | HengKun Software | Standard |
| Maximum Cutting Size(MM) | 2500*1600*600 | Knife Alarm | Installed |
| Tool Size (MM) | 9200 | Self-diagnostic system | Installed |
| Cutting Speed(M/MIN) | 0~10 | Knife Button | Installed |
Applications
Toy industry, software equipment, packaging industry, and building insulation industry.

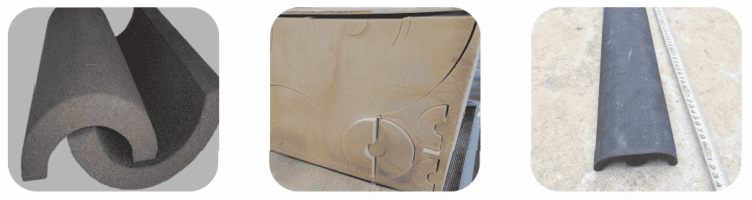

Cutting Sample Scene
