Vertical Oscillating Blade Cutting Machine

China CNC vertical oscillating blade cutting machine(with conveyor) is applied for furniture industry, packaging industry and automotive industry.

Model No.：HK-ZD2022
Machine Type：Oscillating Blade
Blade Type：Vertical Blade
Cutting Speed：0~10M/Min
Accuracy：±0.5MM
Warranty Period：1 Year(Core Component)
Video Factory Inspection：Yes
Selling Point：Low Maintenance Cost,Good Performance

Get Free Quote Send Email

Details

CNC vertical oscillating blade cutting machine(with conveyor) is applied for furniture industry, packaging industry and automotive industry.All of the cutting movement is totally controlled by computer and this will reduce large amount of human resources and improve the production efficiency.Itcan save more power and material consumption.The blade cuts with high speed vibrating. The blade runs faster and the cutting material will be smoother. There is few dust during the cutting.It is very easy to tranfter the foam block automatically after the foam is moved onto conveyor by remote control. CNC vertical oscillating blade cutting machine(with conveyor) is applied for furniture industry, packaging industry and automotive industry.

● Holding down system for fixing the block and can hold the foam block firmly.

●The dust-free cutting of any shapes cutting.

●The cutting speed is 10m/min and it can be adjusted according to the different cutting materials.

●cutting precision is high and the tolerance can reach +/- 0.5mm.

Machine Features

High processing accuracy, minimal waste material, automatic reset, low consumable cost, dust free.

Technical Data

Model No.	HK-ZD2022
Machine Weight(T)	2.2	AC power supply	220V 380V 415V 50/60HZ
Total Power (KW)	9	Compressed Air Supply	6 Bar Pressure
Machine Dimensions(MM)	620033002400	Industrial Computer	810E Industrial Machine
Maximum Cutting Size(MM)	300022001300	Manual Rotating Table /Conveyor	Conveyor
Tool Size (MM)	160030.6	HengKun Software	Standard
Cutting Speed(M/MIN)	0~10	Knife Button	Installed
Cutting Accuracy (MM)	±0.5	Self-diagnostic system	Installed
Minimum Cutting Radius (MM)	5	Knife Alarm	Installed

Applications

Foams, latex, shoe materials, cleaning products, packaging.

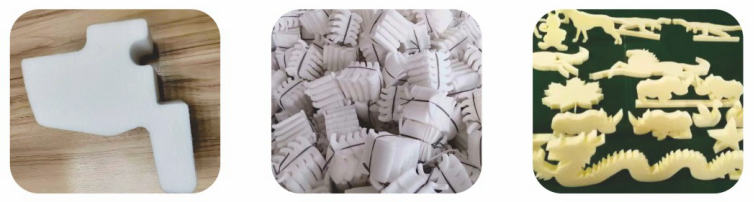

Cutting Sample Scene

Cutting Video
