Revolving Table Oscillating Blade Cutting Machine

China Revolving Table Oscillating Blade Cutting Machine, Leading Oscillating Blade Cutter with Revolving Table Manufacturers & Suppliers, find Double Oscillating Blades Cutter Factory Exporter.

Model No.：HK-ZD2020
Machine Type：Oscillating Blade
Blade Type：Horizontal Blade
Cutting Speed：0~10M/Min
Accuracy：±0.5MM
Warranty Period：1 Year(Core Component)
Video Factory Inspection：Yes
Selling Point：Easy To Operate,Famous Brand Motor,Good Performance

Get Free Quote Send Email

Details

Oscillating Blade Cutter with Revolving Table, The oscillating blade cutter is a versatile and precision cutting tool used in various industries for efficient and accurate material processing. Equipped with customizable settings, the oscillating blade cutter enables precise adjustments in cutting speed, depth, and blade angle. This flexibility makes it suitable for intricate and complex cutting tasks, ensuring clean and consistent results.The oscillating blade cutter offers several key advantages that make it a superior cutting tool for various industries.

●High Processing Precision: The Oscillating Cutter Blades motion ensures precise and accurate cutting, delivering consistent results even for intricate designs or complex shapes, meeting stringent quality standards.

●CAD drawing and Automatic typesetting to save cutting materia.

●The cutting height of the machine can be adjusted according to the different foam block size.

●All imported brand servo motor and pneumatic component to gurantee the high-quality product.

●Max height can reach 1500mm and can meet unformal foam block size.

Machine Features

High processing accuracy,minimal waste material, double-sided cutting, automatic reset, low consumable cost, dust free.

Technical Data

Machine Weight(T)	1.8	AC power supply	220V 380V 415V 50/60HZ
Total Power (KW)	8	Manual Rotating Table /Conveyor	Manual Turntable
Cutting Accuracy (MM)	±0.5	HengKun Software	Standard
Maximum Cutting Size(MM)	220022001300	Knife Alarm	Installed
Tool Size (MM)	246030.6	Self-diagnostic system	Installed
Cutting Speed(M/MIN)	0~10	Knife Button	Installed

Applications

Functional mattress, interior decoration, foams, latex, automotive products.

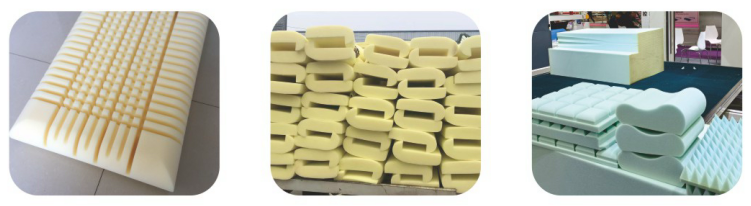

Cutting Sample Scene

Cutting Video
